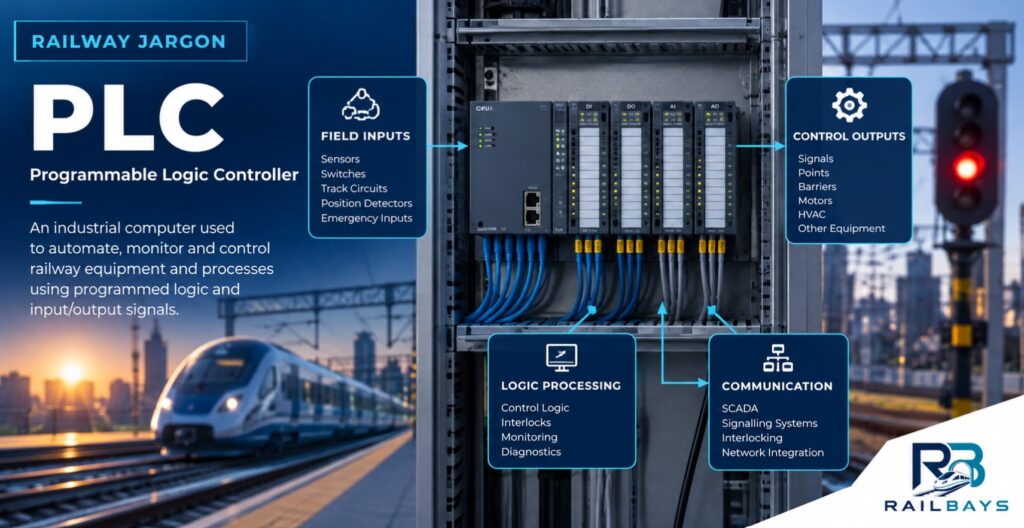

A Programmable Logic Controller (PLC) is a robust industrial computer used to automatically monitor and control equipment and processes. In simple terms, a PLC receives information about what is happening in the railway environment, applies programmed rules or logic, and then decides what equipment should do.

The basic operation of a PLC can be understood as:

INPUTS → PLC LOGIC → OUTPUTS → FEEDBACK / MONITORING

For example, consider a railway station drainage sump. A water-level sensor detects that the water has reached a high level and sends an input signal to the PLC. The PLC checks its programmed logic and, if the required conditions are satisfied, sends an output command to start a drainage pump. The PLC can then monitor whether the pump has actually started and generate an alarm if the expected response is not received.

Similarly, in a railway tunnel ventilation system, sensors may provide information about temperature, air quality, smoke conditions or equipment status. Based on its programmed logic and the selected operating mode, the PLC can start or stop ventilation fans, operate dampers and monitor whether the commanded equipment has responded correctly.

What does a PLC receive?

PLCs receive input signals from field equipment that tells the controller about the condition of the railway infrastructure or equipment. Inputs may come from devices such as sensors, switches, push buttons, limit switches, level sensors, pressure sensors, temperature sensors, flow meters, equipment status contacts and fault indications.

An input could therefore tell the PLC:

“The water level is high.”
“The fan is running.”
“The door is open.”
“The temperature has exceeded the limit.”
“The pump has failed.”

The PLC continuously reads these inputs and compares them against its programmed control logic.

What does the PLC do with this information?

The PLC contains a control program defining how equipment should respond under different conditions.The logic may be relatively simple, such as:

IF water level is HIGH → START Pump

or involve several conditions:

IF water level is HIGH + Pump 1 is available + no fault exists → START Pump 1

More complex PLC programs can manage equipment sequencing, timers, operating modes, duty/standby arrangements, interlocks, alarms and automatic changeover between equipment.

For example, where two drainage pumps are installed as duty and standby, the PLC may normally operate Pump 1. If Pump 1 fails, the PLC can automatically command Pump 2 and report the failure to the supervisory system.

What does a PLC control?

After processing the inputs, the PLC generates outputs that command equipment to perform an action.Depending on the railway system, outputs may operate motors, pumps, ventilation fans, dampers, valves, contactors, actuators, lighting controls and other electrical or mechanical equipment.The PLC therefore acts as an important connection between field conditions and the equipment required to respond to those conditions.

PLCs in railway infrastructure

PLCs are used extensively across railway infrastructure, particularly where equipment must operate automatically and reliably.Typical applications include station mechanical and electrical systems, tunnel ventilation systems, pumping and drainage systems, traction power facilities, substations, depots, environmental control systems, plant rooms and other automated railway infrastructure.

A civil or structural engineer may not design the PLC itself, but the PLC system can still create important multidisciplinary interfaces. For example, PLC-controlled equipment may require sensors installed in civil structures, equipment foundations, cable containment, penetrations, equipment rooms, power supplies, communication connections and safe maintenance access.

Understanding the basic PLC function therefore helps engineers recognise where their own discipline interfaces with the control system.

PLC and SCADA/BMS

A PLC normally performs the local control of equipment, while higher-level systems provide broader supervision and operator interaction.

For example:

Field equipment → PLC → SCADA/BMS → Operator

The PLC may control a pump automatically at site level while transmitting its running status, fault condition, operating mode, alarms and measurements to a Supervisory Control and Data Acquisition (SCADA) system or Building Management System (BMS).

An operator may therefore see that a pump is running from a control room without directly controlling the electrical circuit that operates the pump. Where permitted by the system design, the operator may also issue commands through SCADA or BMS, which are then communicated to the PLC for execution.

Reliability and redundancy

Railway systems often require high levels of availability. Depending on the importance of the controlled equipment, PLC systems may therefore incorporate redundant processors, redundant power supplies, distributed input/output (I/O) modules and redundant communication networks.

For example, failure of a single PLC component should not necessarily result in loss of an important tunnel ventilation or drainage function where the project availability requirements require redundancy.

PLCs and railway safety

A standard industrial PLC should not automatically be assumed to be suitable for performing a safety-related function.

Where PLC logic contributes to a defined safety function, the system must satisfy the applicable functional-safety requirements. This may require a certified Safety PLC (Fail-Safe PLC), appropriate system architecture and a defined Safety Integrity Level (SIL).

This distinction is particularly important in railway applications: redundancy improves availability, but redundancy alone does not make a PLC system safety-rated or fail-safe.

In simple terms

A PLC can be thought of as the automatic decision-making controller for railway equipment:

Sensors tell the PLC what is happening → the PLC applies programmed rules → equipment is commanded to respond → the PLC checks the response → important information is reported to operators and supervisory systems.

This explanation should work particularly well for the RailBays audience because someone outside MEP/control engineering can understand what the PLC actually does, while the later sections introduce the engineering terminology they will encounter on a railway project.

mainline, high_speed, metro, light_rail, freight, depot

IEC 61131 series; IEC 61508 where applicable to functional safety; IEC 62443 series for industrial automation and control system cybersecurity
